IRM Roofing were contracted to carry out some industrial roofing in Banbury at the Banbury Cross Retail Park. It was part of a major refurbishment programme over the entire retail park, which also included installing Plygene Gutter Liner.
With a new tenant due to take over the lease, the task was to remove the old corroding outer roof panels and replace them with new 0.7mm thick Plastisol coated, box profile metal roofing sheets, which held a long 25 year life expectancy. The inner panels and existing insulation remained in place.
The Banbury industrial roofing works needed to be completed within a two week time frame in order to allow other trades to continue the internal works, so we allocated a highly experienced four man team to ensure all went to plan.
Below are photos from the project. If you require industrial roofing in Banbury then please contact us. We serve commercial customers all over the West Midlands and UK.Click Here To Enquire And Contact IRM Roofing

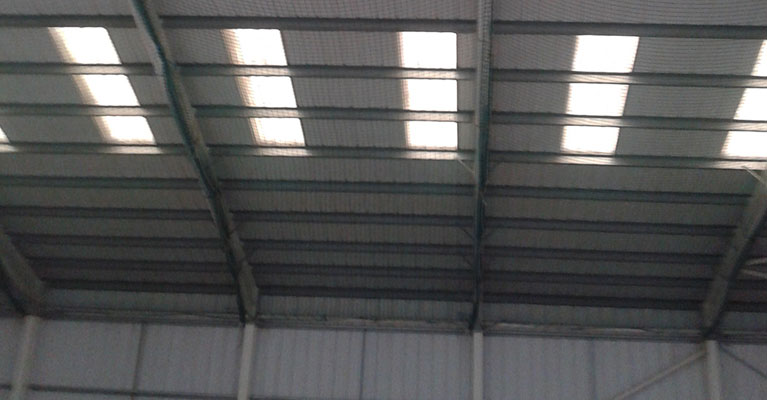

View from inside the building before roofing work begins. Safety netting installed using cherry pickers.
The roof spanned 2,000 square metres and 6 metres high to the eaves. Outside view before starting.

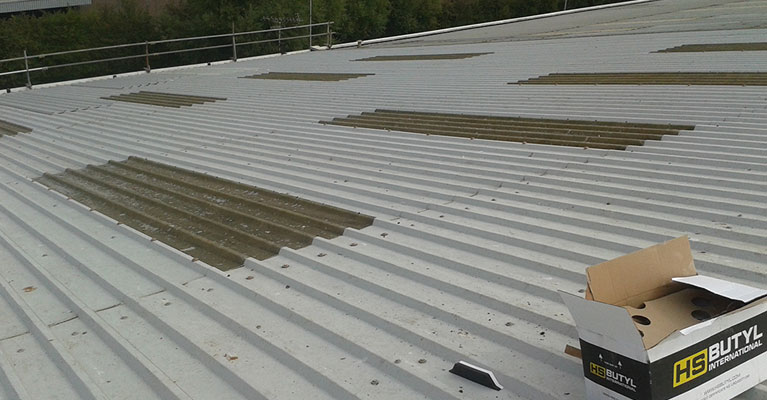

Scaffold edge protection fitted in the background for safety. Butyl sealant box also in view.
View of old and new metal roofing panels during the industrial roofing in Banbury installation.

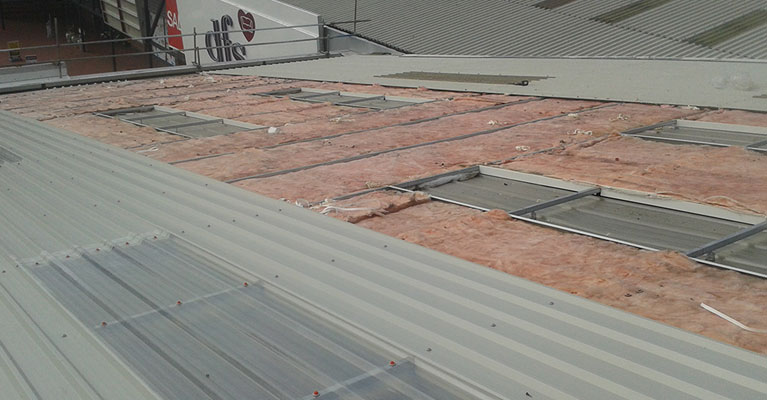

The existing fibre glass insulation remained in place after removing the old Banbury roof panels.
The new and old roofing panels were lifted on and off the roof using a telescopic fork lift.

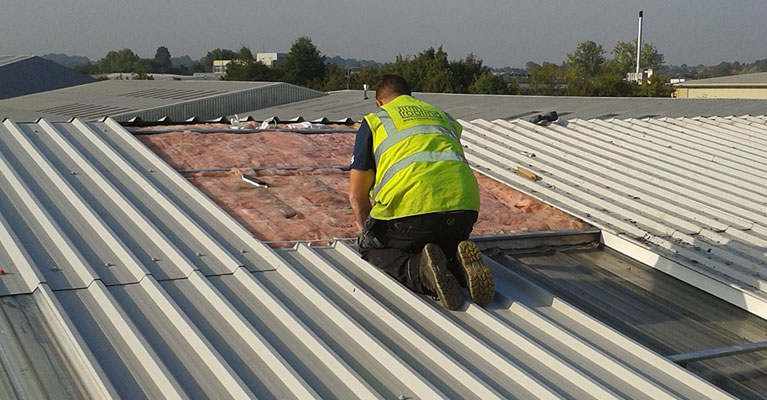

The Butyl sealant was applied by hand, up and down the corrugations, ensuring an unbroken seal.

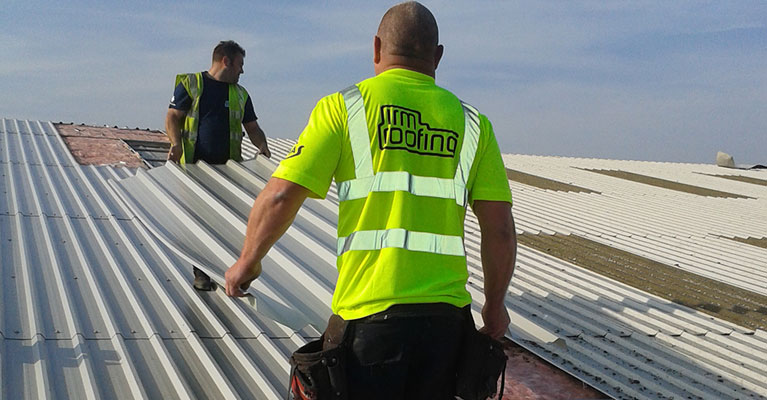

The Plastisol coated, 0.7mm thick box profile metal sheets carry a 25 year life expectancy of material.
Fitting the metal roofing panels into position, being careful not to break the Butyl seal before fixing.

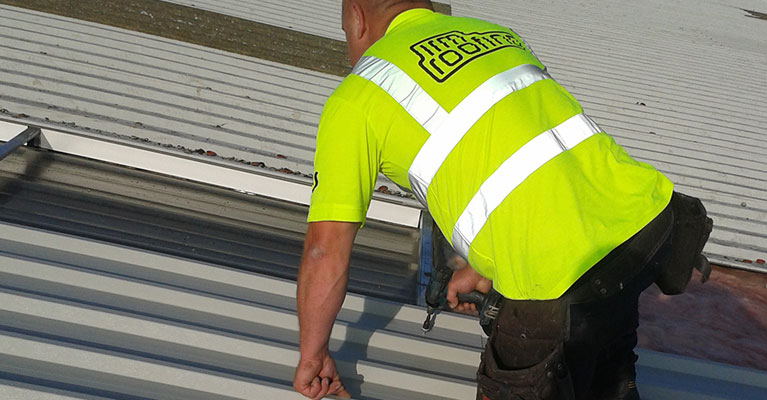

The panels were screwed down with self drilling 'tek' screws, following manufacturers guidelines.

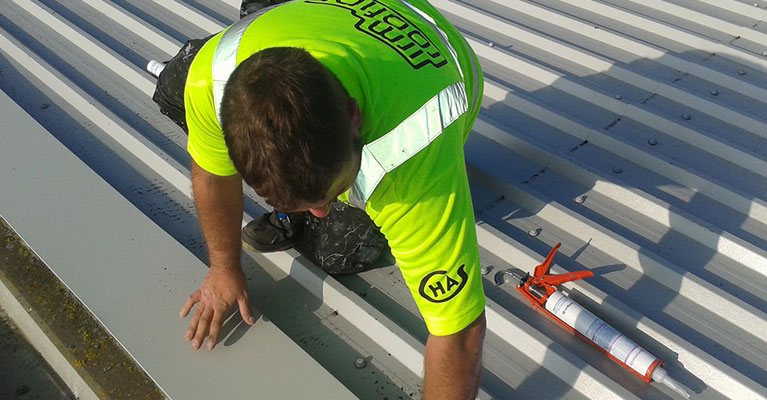

Close up of our Chas accredited industrial roofing installers in Banbury, fitting an edge flashing.

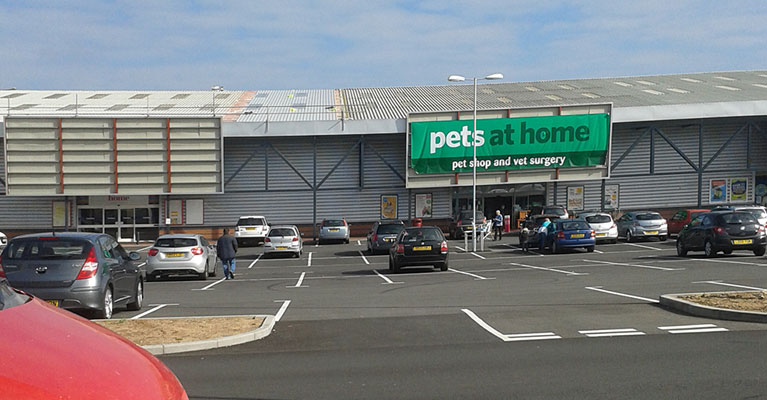

A view from the ground of the completed industrial roofing in Banbury (left hand side as you look).
