Redditch Plygene Gutterline Installation.

Redditch Plygene Gutterline Installation - IRM Roofing

IRM Roofing was instructed to install Plygene Gutterline to a warehouse in Redditch, for a company that supplies pneumatic products. The existing gutters were corroded and leaking, so we recommended Plygene Gutterline (by HD Sharman) as an ideal solution because it comes with a 25 year product guarantee and is the only BBA approved gutter lining system specifically engineered to restore and preserve gutter performance.

We dispatched two of our specialist Plygene installers to Redditch over a two week period to carry out the installation to the rectangular shaped warehouse, which utilised one continuous gutter to four sides - eaves and hip ends, 45m by 20m. The project was visited by an HD Sharman representative before, during and on completion of the works.

Below are photos from the Redditch Plygene installation. If you are looking for Plygene installers then please don’t hesitate to get in touch with us at IRM Roofing. We serve commercial customers across the West Midlands.

Enquire And Contact IRM Roofing
Hi-level view of Redditch warehouse roof.

Hi-level view of the Redditch warehouse roof, rectangular in shape with anchor system and one continuous gutter to four sides (eaves and hip ends).

Narrow hip end gutter length being cleaned out.

View of the narrow girth hip end gutter during the cleaning phase of the works.

Wide eaves gutter length being cleaned out.

View of the wide eaves gutter length during the cleaning phase of the works.

Eaves gutter length after being cleaned out.

View of the eaves gutter after being cleaned out, ready for the Plygene installation. A leaf blower (pictured) is often used to give a final blowout.

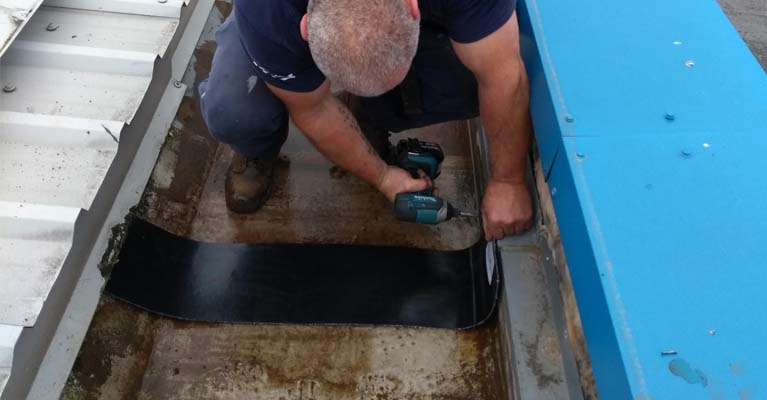

Plygene installer fixing a joint protection strip into position.

One of our Plygene installers fixing a joint protection strip into position. These hide the existing bolts and stop them from piercing the new Plygene liner.

View along eaves gutter length with joint protection strips installed.

View along the eaves gutter length with joint protection strips installed over each gutter joint.

View along hip end gutter length with joint protection strips in position.

View along the hip end gutter length with joint protection strips in position over each gutter joint.

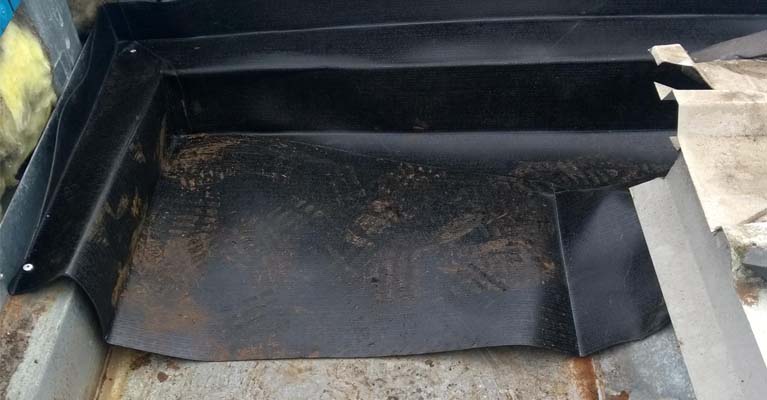

Bespoke pre-formed gutter corner flashing.

Bespoke pre-formed gutter corner flashing ready to be heat welded into position when the liner is installed.

IRM Plygene installer heat welding.

One of our IRM Plygene installers heat welding.

Plygene liner naturally laid into eaves gutter, yet to be fixed down.

View of the Plygene liner laid into position in the eaves gutter length, yet to be fixed down. It is laid naturally (not stretched tight) to allow for expansion and contraction with the climate.

Plygene liner laid naturally into hip end gutter.

View of the Plygene liner laid naturally into the hip end gutter. The small parapet cladding had to be temporarily removed in order to extend the liner behind it.

Plygene Gutterline installed to eaves length with holding down straps in place.

Completed view of the larger Plygene gutter liner installed to the eaves length. The black strips are called holding down straps, installed every 1.2 metres to prevent the liner from uplifting.

Completed view of the opposite eaves gutter length.

Completed view of the opposite eaves gutter length.

Wider shot of the completed Redditch Plygene installation.

Wider shot of the completed Redditch Plygene installation. The hole in the middle of the liner is a bespoke heat welded gutter outlet (we installed 10 of them in total).
